Sirius Specifications
| Tweeter | |
|---|---|
| Weight: | 3,6 kg |
| Diameter: | 131 mm |
| Voice Coil Diameter: | 75 mm |
| Neodymium ring magnet: | 130 mm |
| Die cast chassis | |
| Nomex voice coil former | |
| Composite nitride-titanium diaphragm |
| Woofer | |
|---|---|
| Weight: | 6,2 kg |
| Diameter: | 315 mm |
| Voice Coil Diameter: | 100 mm |
| 16 Neodymium magnets: | 26 mm |
| External neodymium magnet assembly | |
| Die cast chassis | |
| Double Demodulating Rings (DDR) | |
| Exclusive Carbon fibre reinforced straight ribbed cone |
| Phaselinear crossover | |
|---|---|
| Impedance: | 6 Ohm |
| Sensitivity: | 93 dB SPL |
| Power handling: | 400 W RMS |
| Beamwidth ±3dB: | 30...23kHz |
| Dimensions: | |
| . Width: | 360(430) mm |
| . Depth: | 360(430) mm |
| . Height: | 1320 mm |
| Weight: | 60 kg |
| Guarantee: | 5 Years |

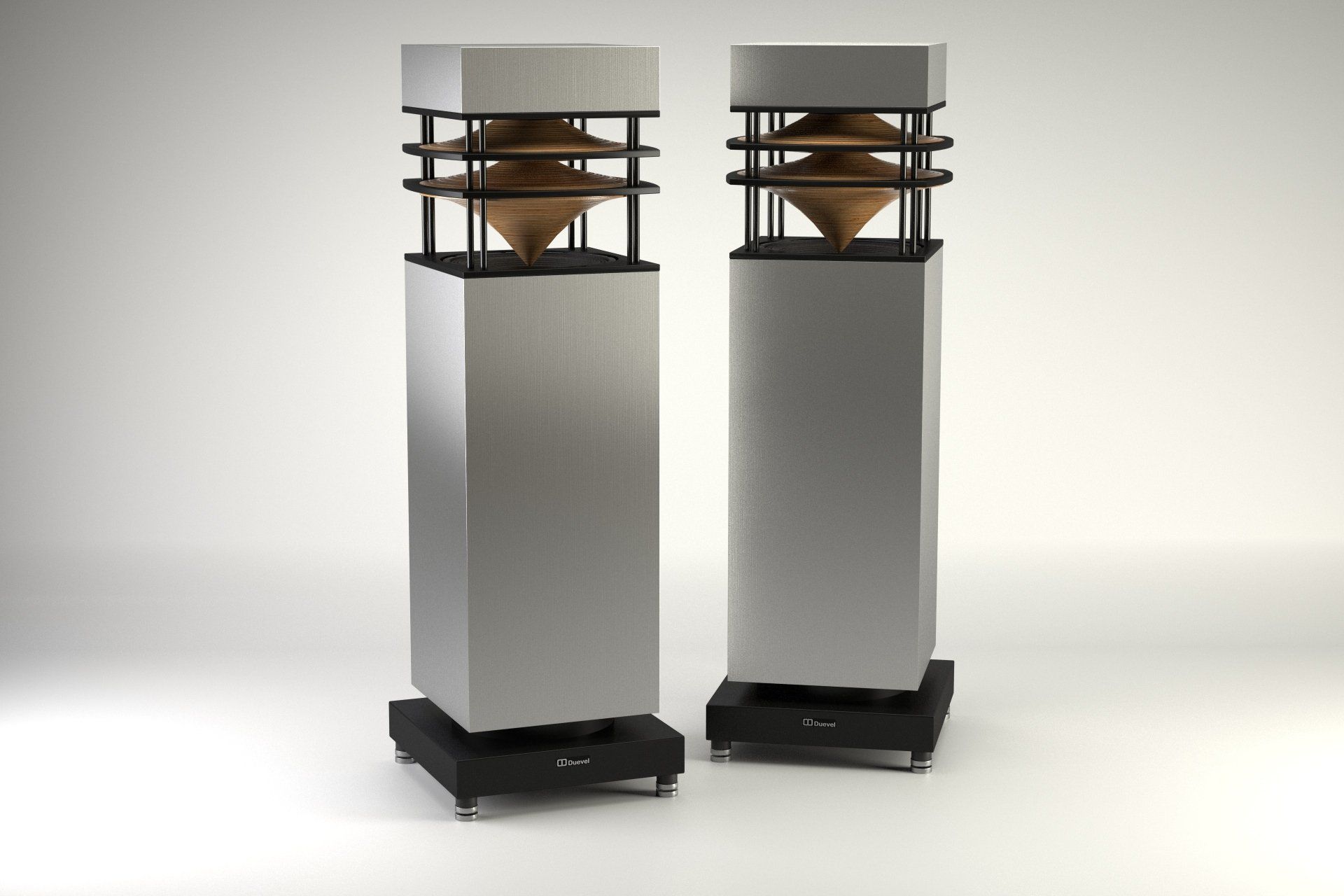

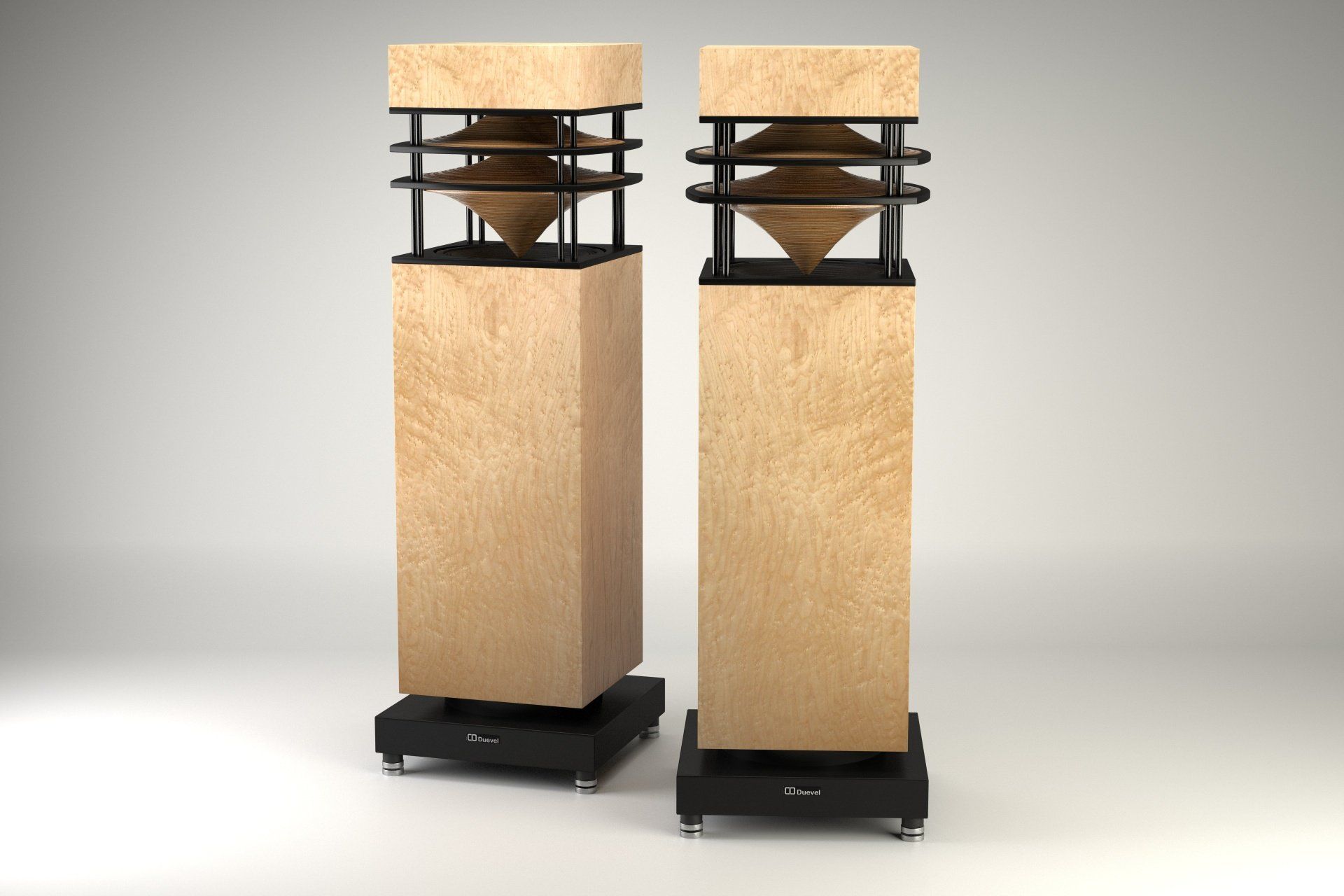

This Omni-directional Horn-speaker is the ultimate expression of Duevel technology. The Sirius reigns supreme among all speakers. 5 watts of SET amplification will wake the ultimate power locked within the massive Jove. Listen and become captivated by the ultimate expression of live music in your home. The final realization of recorded music's intent, to bring you back to the original venue in which the music was first played. Thunderous bass, glorious mids and soaring highs fill large listening spaces with the thunder of blistering rock and roll to the sublime velvety blackness of an orchestra poised at the conductors baton.
You will find many more expensive transducers in the realm of high-end audio, but none with the near mythological prowess of Sirius. Hearing your favorite music through the Sirius is something that cannot be forgotten cannot be duplicated. Duevel's are no ordinary loudspeakers. Let the music be your master. Will you heed his master's voice?
You will find many more expensive transducers in the realm of high-end audio, but none with the near mythological prowess of Sirius. Hearing your favorite music through the Sirius is something that cannot be forgotten cannot be duplicated. Duevel's are no ordinary loudspeakers. Let the music be your master. Will you heed his master's voice?

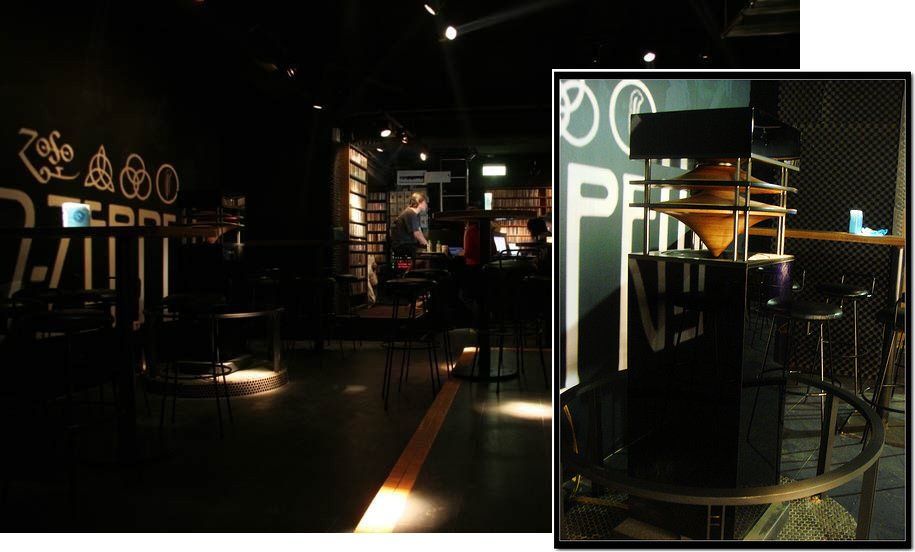

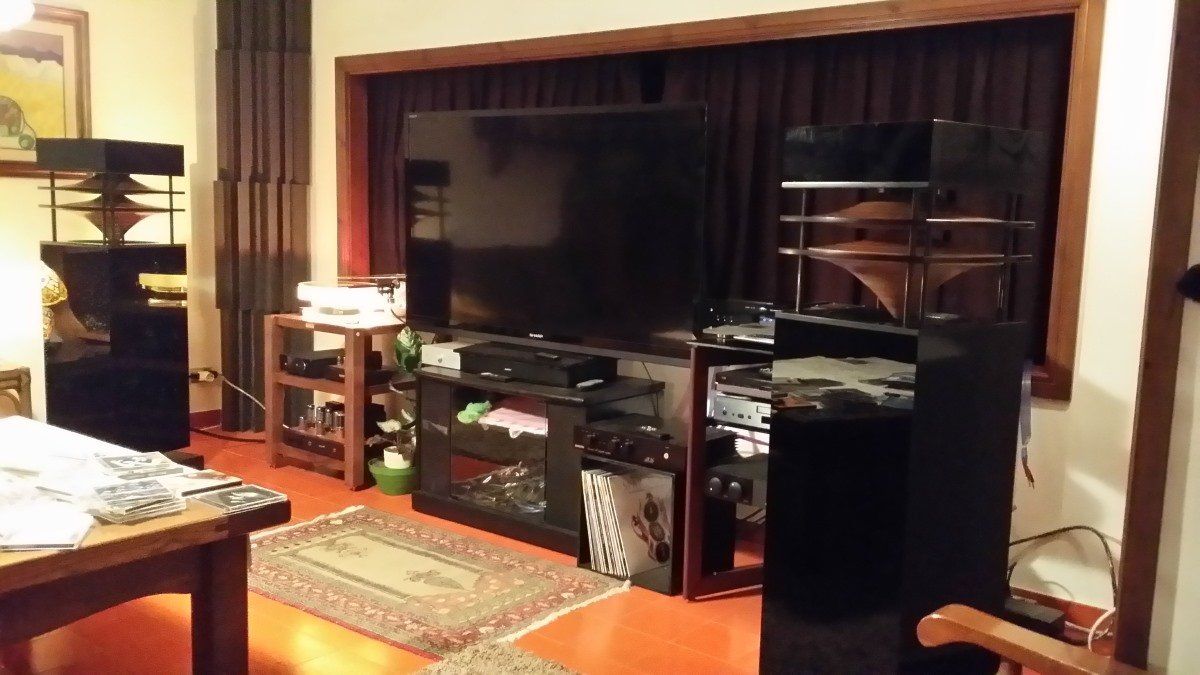

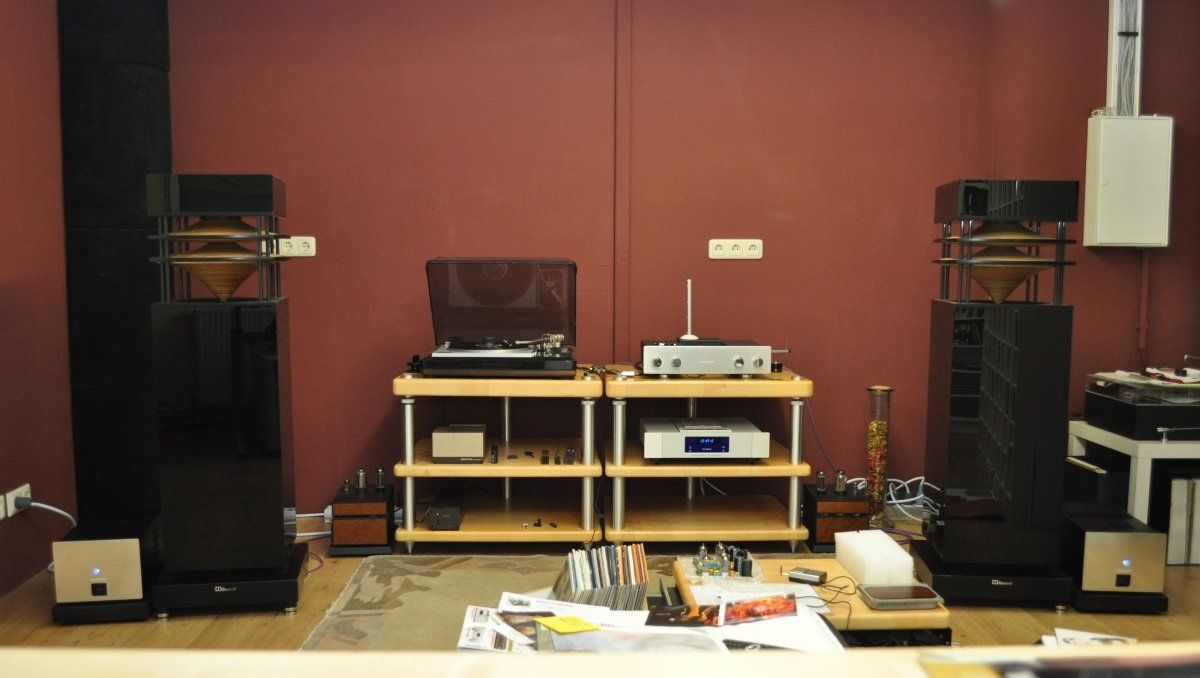

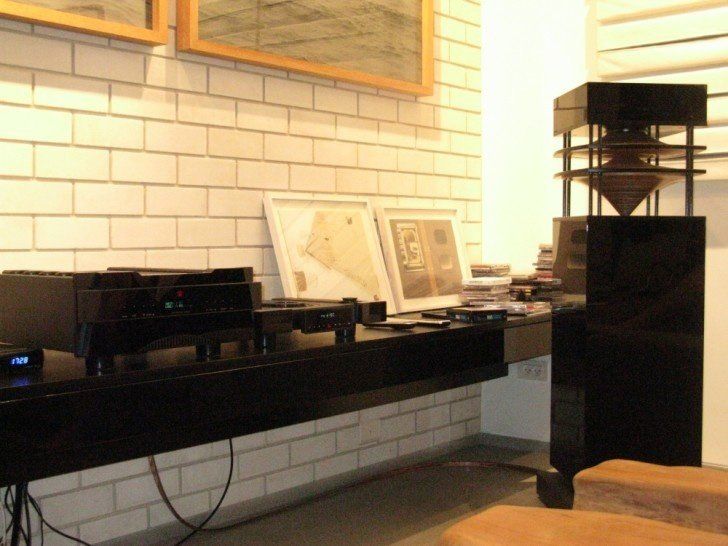

In case you are a proud owner of an Duevel product and would like to show it here,
we appreciate if you will e-mail us a picture and/or comments of your setup.
Please send your files to:
usergallery@duevel.info.
We are looking forward to your letter.
This video shows the design and manufacture of the Duevel Sirius bass diffuser cone.
This is a precise and meticulous process that involves several steps:
1. CAD drawing: first, a detailed CAD drawing of the cone is created.
2. CNC programming: CNC programming is carried out on the basis of the CAD drawing.
3. 3D CNC milling: In this step, the actual milling of the taper takes place.
4. pre-sanding: After milling, the taper is subjected to pre-grinding.
5. base coat: The base coat is then applied.
6. intermediate sanding: After the base coat, intermediate sanding is carried out
7. final coating
8. assembly: Finally, the cone is assembled.
